| Model NO. | AC12 |

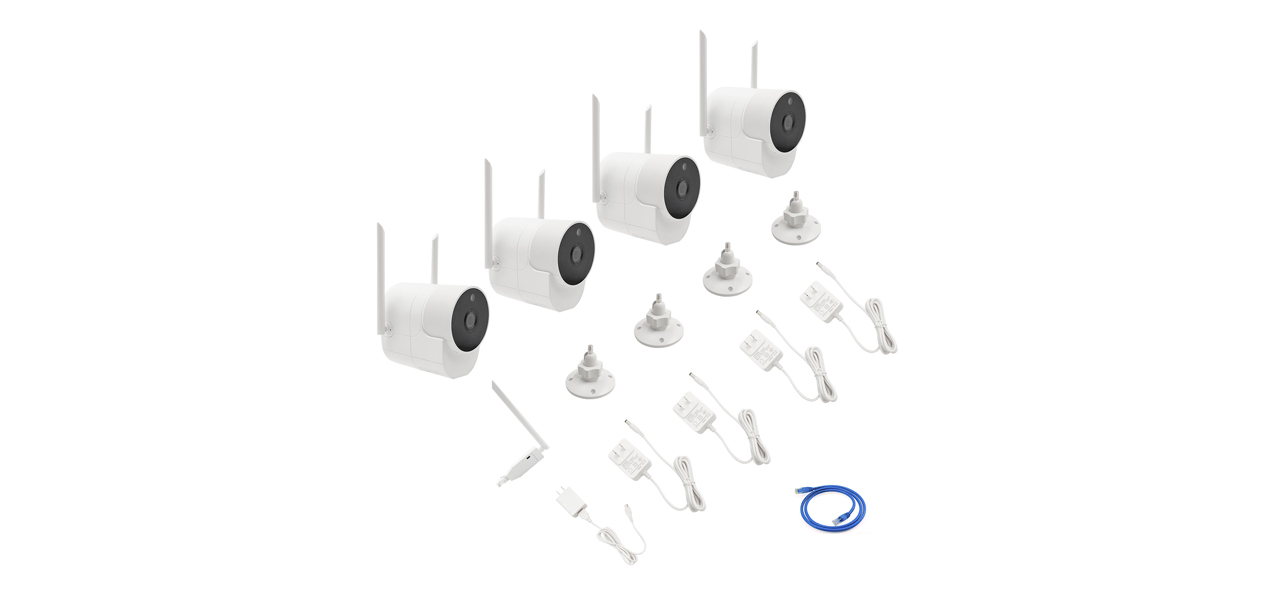

| Package |

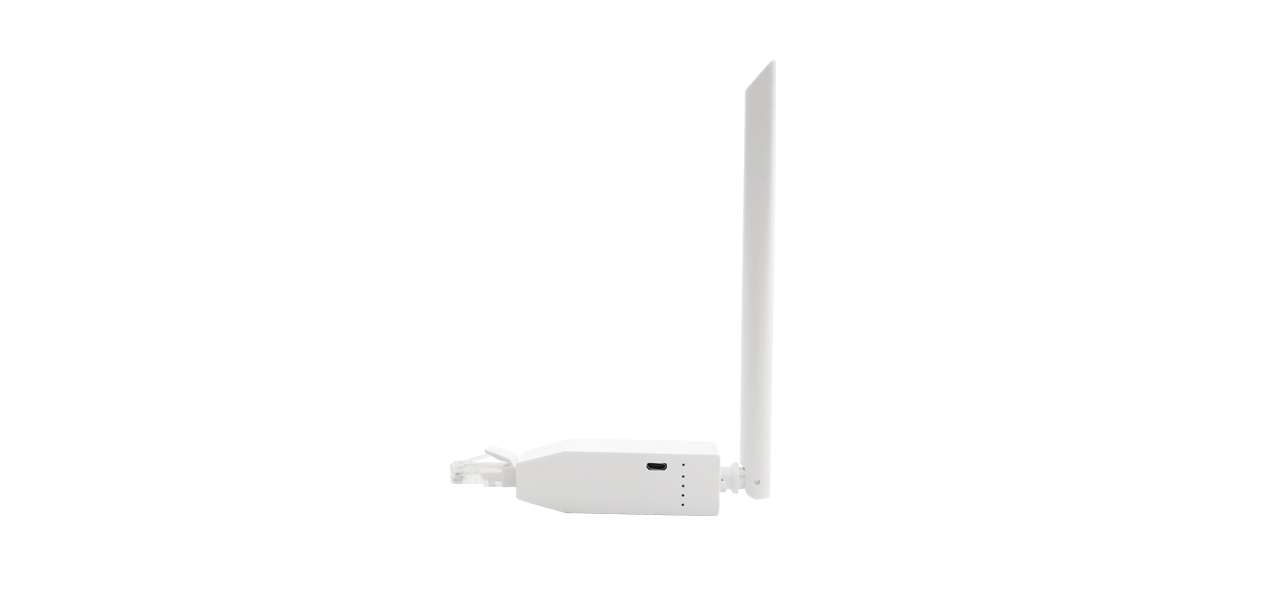

| Repeater | 1pcs |
| Camera | 4pcs |
| Cable | 1 x 1m Net Cable |
| Mouse | / |
| Adaptor | 1xDC 5V 1A for Repeater, 4xDC 12V 1A for WIFI IP Camera |

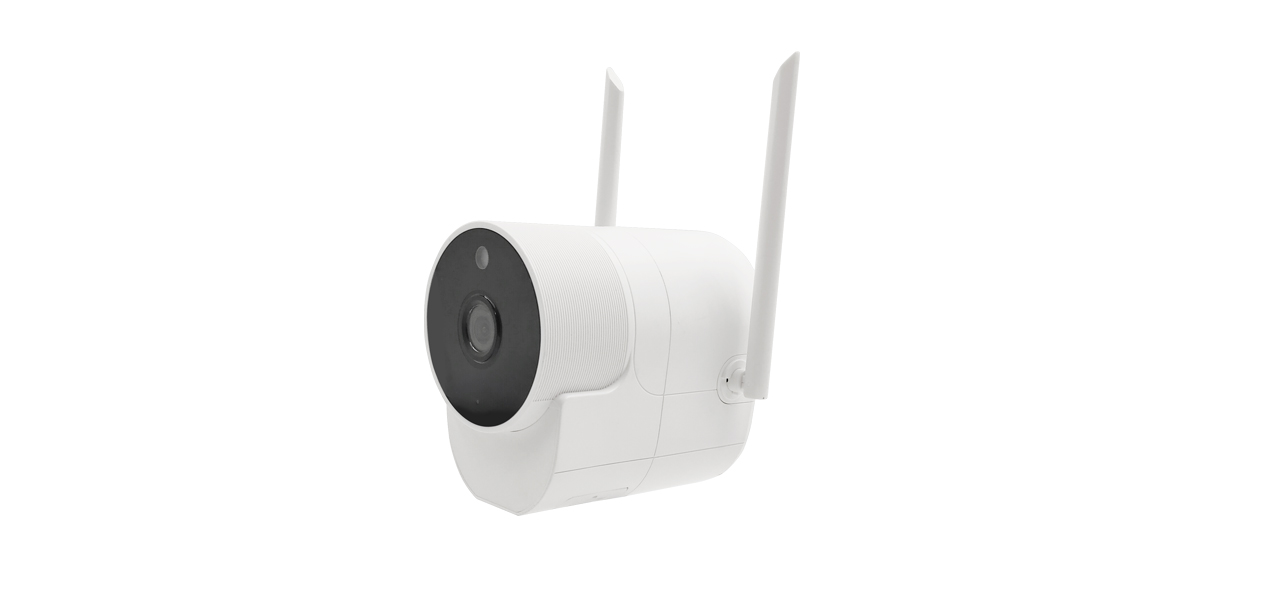

| Camera |
| Image Sensor | 1/2.9"COMS sensor |
| Resolution | 2MP 1080P |
| Effective Pixels | 1920(H)*1080(V) |
| Compression | H.264/H.265 |
| TV System | PAL |
| Electronic Shutter Time | Auto（1 / 12s~1 / 100000s） |
| S/N Ratio | 40dB |
| Scanning System | Progressive |
| Video Output | Wireless network |
| Reset Button | Yes |
| LENS Type |
| Focus Length | 200W_2.8mm Super wide-angle lens |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 2M Pixels |
| Night Vision |
| Infrared LED | 24µ x 4PCS |
| Infrared Distance | 5~10M |
| IR Status | Auto Control |
| IR Power On | Auto Control |
| Network |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP、UDP、HTTP、DDNS、DHCP、FTP、NTP |
| ONVIF | Support |
| P2P | Support |
| POE | / |
| Main Stream 1 | 1920*1080@12fps |
| Main Stream 2 | / |
| Main Stream 3 | / |
| Sub Stream 1 | 640*360@12fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | / |
| IE Brower | / |
| Smart Phone | support |
| Wireless |
| Antena | cameras 3dbi |
| Repeater 5dbi |
| Hotspot | Support |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n) |
| WIFI Range | No obstacles 350m Max. |
| Camera Features |
| Day/Night | Color/ B&W (IR-CUT ) |
| Minimun Illumination | 0.01 Lux |
| Image Config | YES |
| Corridor Pattern | / |
| ROI | / |
| Defog Mode | / |
| BLC | / |
| HDR | / |
| 3DNR | Support |
| DWDR | Support |
| Motion Detection | Support |
| Privacy Masking | / |
| Recording Mode | SDcard |
| Language | / |
| Interface |
| Audio | 2-Way Audio |
| Alarm | Motion Detection |
| Personnel intrusion（Optional） |
| SD Card Slot | Support Max 128G |
| RS485 | / |
| General |
| Housing | plastic , IP65 |
| Bracket | Support |
| IR Cut Filter | YES |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Camera size | 230(W)x130(H)x110(D)mm |
| Packing for the outer | 270(W) x 238(H) x 283(D)mm |
| Weight | 5.6kg/SET |
