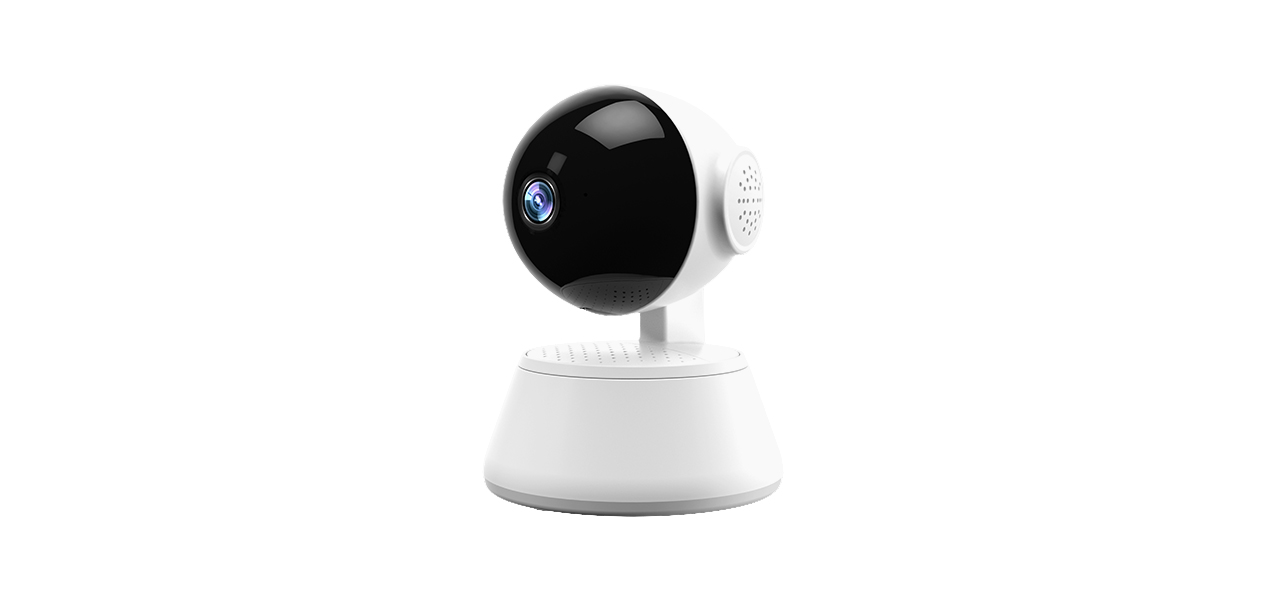

| Model NO. | AC05 |
| Package |
| Camera | 1pcs |
| Adaptor | 1xDC 5V 1A |
| Camera |
| Image Sensor | 1/2.9"CMOS sensor |
| Resolution | 2MP 1080P |
| Effective Pixels | 1920(H)*1080(V) |
| Compression | H.265 |
| Electronic Shutter Time | Auto（1 / 12s~1 / 100000s） |
| S/N Ratio | 40dB |
| Scanning System | Progressive |
| Video Output | Wireless network |
| Reset Button | Yes |
| PTZ |
| Horizontal Rotation Range | 0~355° |
| Tilt Rotation Range | 0~104° |
| LENS Type |
| Focus Length | 3.6mm F2.0 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 2M Pixels |
| Night Vision |
| Infrared LED | 14µ x 4PCS |
| Infrared Distance | 5~10M |
| IR Status | CDS Auto Control |
| IR Power On | Auto Control |
| Network |
| Ethernet | / |
| Protocol | TCP/IP、UDP、HTTP、DDNS、DHCP、FTP、NTP |
| ONVIF | / |
| P2P | Support |
| POE | / |
| Main Stream 1 | 1920*1080@20fps |
| Main Stream 2 | / |
| Main Stream 3 | / |
| Sub Stream 1 | 640*360@20fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | / |
| IE Brower | / |
| Smart Phone | support |
| Wireless |
| Antena | 5dbi |
| Hotspot | Support |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n) |
| WIFI Range | No obstacles 180m Max. |
| Camera Features |
| Day/Night | Color/ B&W (IR-CUT ) |
| Minimun Illumination | 0.01 Lux |
| Image Config | YES |
| Corridor Pattern | / |
| ROI | / |
| Defog Mode | / |
| BLC | / |
| HDR | / |
| 3DNR | Support |
| DWDR | Support |
| Motion Detection | Support |
| Privacy Masking | / |
| Recording Mode | SDcard |
| Language | Chinese、English |
| Interface |
| Audio | 2-Way Audio |
| Alarm | Motion Detection |
| SD Card Slot | Support Max 128G |
| General |
| Housing | plastic |
| Bracket | Support |
| IR Cut Filter | YES |
| Operation Temperature | -10℃ ~ +50℃ RH75% Max |
| Storage Temperature | -20℃ ~ +60℃ RH75% Max |
| Size | 90(W)x155(H)x88(D)mm |
